114
JACKS AND PLUGS
3.5MM SINGLE MONO AND STEREO JACKS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

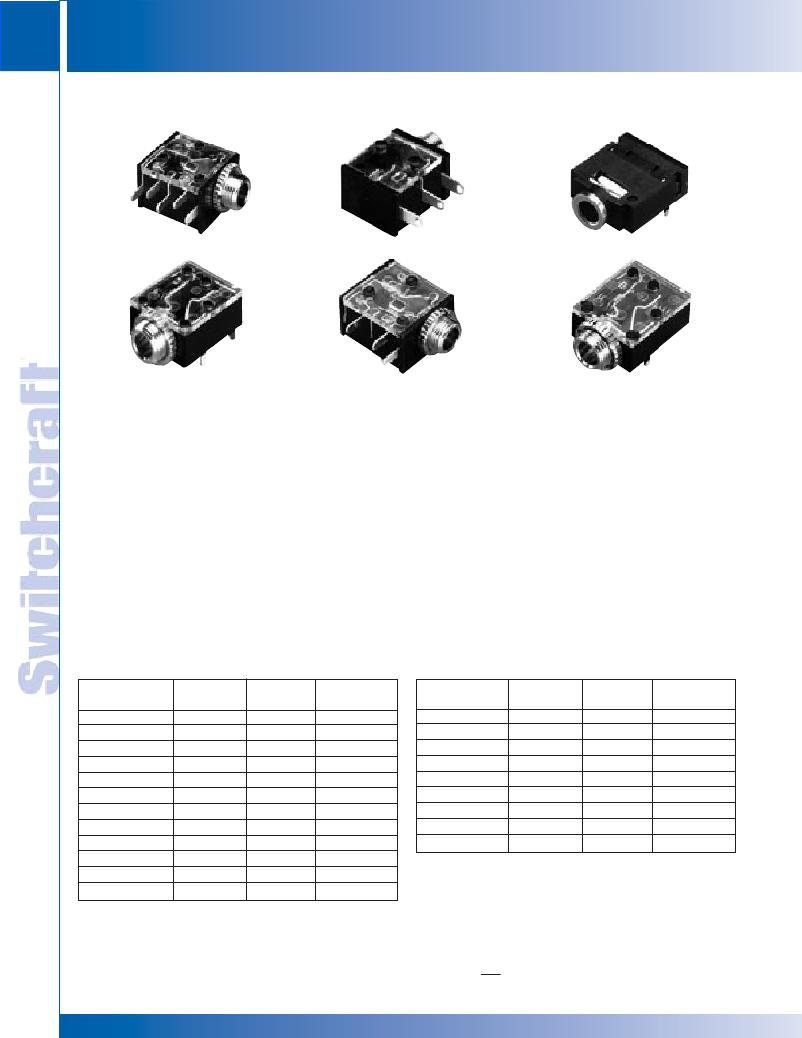

3.5MM SINGLE MONO AND STEREO JACKS
35RAPC4BV4
35RAPC4BH3
FEATURES
? 2 and 3 conductor 3.5mm phone jacks
? Right angle PC mount, true SMT
versions, and open frame panel mounts
? Wide variety of circuits available
? Mates with all 3.5mm plugs Right angle
PC mount available in low profile,
horizontal styles
35RAPC2AV
35RAPC2BV4
MATERIALS
Housing: Thermoplastic, UL94V-1
Terminals: Silver-plated, copper alloy
Bushing: Nickel-plated, copper alloy
Performance Specifications:
Contact Resistance: < 50 milliohms
Insulation Resistance: 100 milliohms min.
Dielectric Withstanding Voltage: 250
VAC (35RAPC2BHN2- 500 VAC)
Open Frame Versions Materials:
Housing (35PM2BV2):
Thermoplastic, 94V-1
35RAPC2BHN2
35RAPC2BH3
Insulating Washers: Rigid Plastic
Springs: Copper alloy
Sleeve Terminal: Tin-plated, copper alloy
Hardware: Supplied with one, P11501
nickel-plated brass locknut, and one,
S17901 nickel-plated steel flat washer
Performance Specifications:
Contact Resistance: .075 ohms max.
Insulation Resistance: 5,000 Mohms
min
Dielectric Withstanding Voltage:
250 VAC Life: 5000 cycles, min
Life: 5000 cycles, min.
Bushing: Nickel-plated, copper alloy
ORDERING INFORMATION
Part numbers which include the letter “N” designate non-threaded bushings.
Part numbers without the letter “N” designate threaded bushing.
Height vs.
Height vs.
Part Number
35RAPC2AV
35RAPC2AHN2
35RAPC2AHN3
35RAPC2BHN2
35RAPC2BHN3
35RAPC3BHN2
35RAPC3BHN3
35RAPC4BHN2
35RAPC4BHN3
Description
mono
mono
mono
stereo
stereo
stereo
stereo
stereo
stereo
Width
vertical
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
horizontal
Bushing
threaded 3
non-threaded
non-threaded
non-threaded
non-threaded
non-threaded
non-threaded
non-threaded
non-threaded
Part Number
35RAPC4BH3
35RAPC2AV4
35RAPC2BV4
35RAPC3BV4
35RAPC4BV4
35RAPC2AVN4
35RAPC2BVN4
35RAPC3BVN4
35RAPC4BVN4
Description
stereo
mono
stereo
stereo
stereo
mono
stereo
stereo
stereo
Width
horizontal
vertical
vertical
vertical
vertical
vertical
vertical
vertical
vertical
Bushing
threaded 3
threaded 3
threaded 3
threaded 3
threaded 3
non-threaded
non-threaded
non-threaded
non-threaded
35RAPC2AH3
35RAPC2BH3
35RAPC3BH3
mono
stereo
stereo
horizontal
horizontal
horizontal
threaded 3
threaded 3
threaded 3
Replacement Knurl Nut P3345
1. Order by part number
2. Contact Switchcraft for special ordering information
3. Mounting hardware included.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
